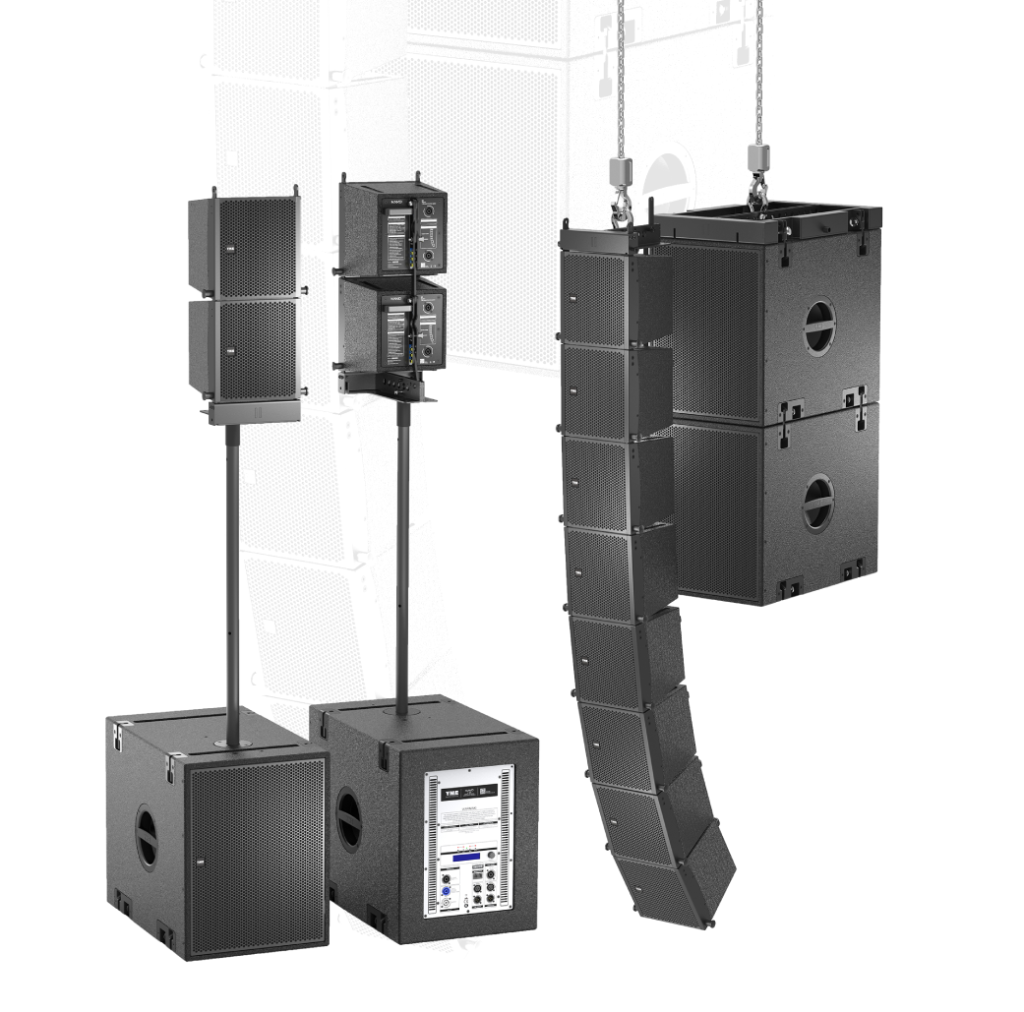

NANO N9 – Compact Power with Coaxial Precision
The N9 is a single 9” coaxial line array speaker engineered for exceptional clarity and throw in small to mid-size venues. Despite its compact 250mm enclosure, it delivers up to 134dB SPL with a powerful 3” neodymium HF driver and 9” neodymium LF driver. Designed with a patented coaxial waveguide, it ensures perfect phase alignment and true line array behavior—ideal for high-end touring, rentals, and fixed installs where size meets performance.

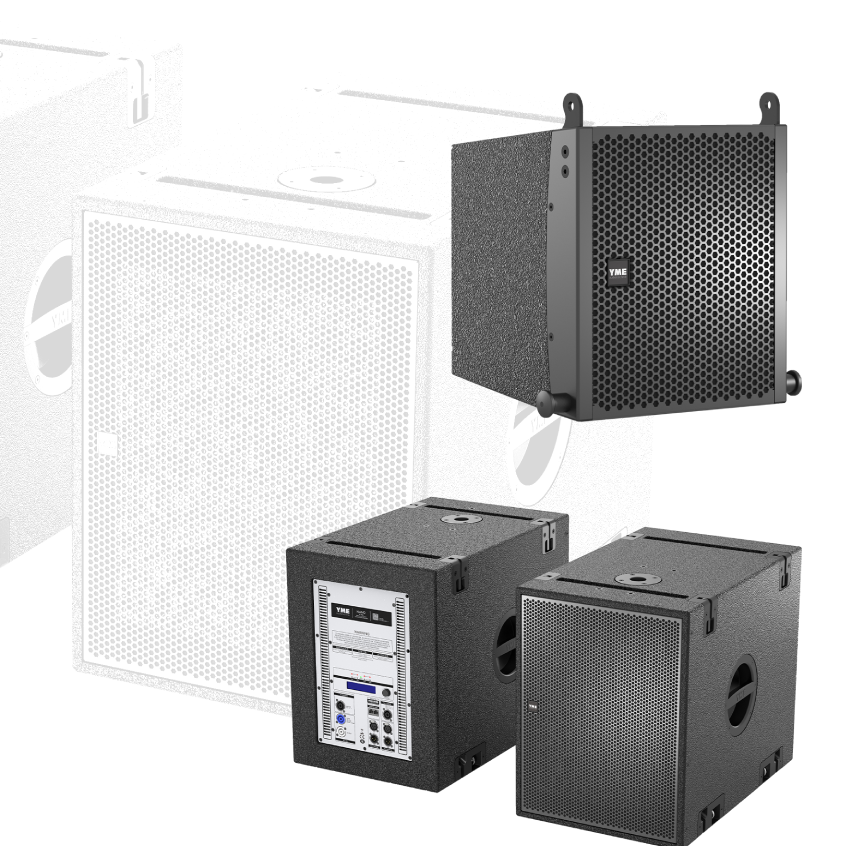

N15B / N15BA – Deep Bass. Small Footprint.
Designed to match the N9’s clarity with tight, punchy bass, the N15B (passive) and N15BA (active) subwoofers feature a compact 15” design with optimized porting and robust low-end output. The active version comes equipped with an integrated 2300W Class-D amplifier module and DSP, allowing direct control, precise crossover management, and seamless integration. Smart rigging options and lightweight enclosures make deployment fast and flexible for mobile and installed setups.

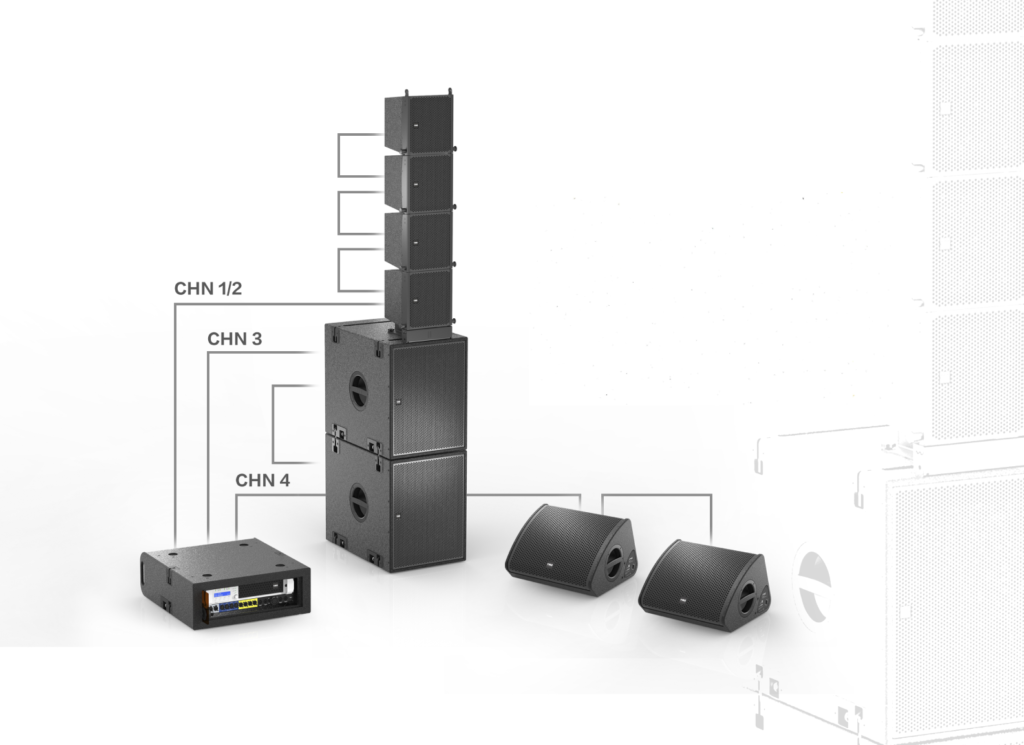

GENE RACK & NANO Amplification – Intelligent Power That Delivers
At the heart of the NANO ecosystem is a range of high-efficiency amplification solutions built for performance and reliability. The NANO amplifier module provides 4x2300W, advanced Switched Mode PSU with PFC, and 2-in/4-out DSP with full system protection. For passive setups, the GENE RACK 2 offers the same power and DSP precision with a modular 2U design, 512-tap FIR filters, and flexible I/O control—making it the ultimate choice for scalable, professional-grade audio systems.
| Model No. | N 9 | N 15B | N 15BA |
|---|---|---|---|
| Frequency Response | 95Hz - 20kHz (-10dB) | 40Hz -- 200Hz (-10dB) | 40Hz -- 200Hz (-10dB) |
| Sensitivity | HF:112dB LF:103dB | 96dB | 96dB |
| Nominal Impedance | HF:16Ω LF:16Ω | 8Ω | 8Ω |
| Power Rating (AES) | HF:90W LF:450W | 700W | 700W |
| LF Driver | 1x9” (75mm voice coil) neodymium | 1x15” (75mm voice coil) ferrite | 1x15” (75mm voice coil) ferrite |
| HF Driver | 1x3” (1.4” exit) neodymium (75mm voice coil) | ||
| Nominal Dispersion | H:100° V:10° | ||
| Max SPL | 134dB | 130dB | 130dB |
| Dimensions (HxWxD) | 11 13/16 x 9 3/4 x 10 15/32 (in) | 21 7/8 x 16 25/32 x 25 31/32 (in) | 556x426x660 (mm) |
| Weight | 25 lbs | 95 lbs | 117 lbs |
| Connector | 2 x Neutrik NL4MP | 2 x Neutrik NL4MP | |
| Connection | LF 1+1-, HF 2+2- | 1+1- | |
| Enclosure | 15mm multilayer birch plywood | 15mm, 18mm multilayer birch plywood | 15mm, 18mm multilayer birch plywood |
| Finishing | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint |
| Grill | Black steel grill with acoustic foam | Black steel grill with acoustic foam | Black steel grill with acoustic foam |
| Amplifier Type | D class | ||
| Power | 4 x 2300W 4Ω | ||
| Power Supply | Switching power, PFC (100V~240V~, 50-60Hz) | ||
| DSP | 32 bit 192 KHz audio processor | ||
| AD/DA | 24bit / 96KHz | ||
| THD (1kHz, 4Ω) | ≤1% | ||
| SNR | 103dB | ||
| Signal |
Full range: 1xXLR (M); 1xXLR (F) Sub: 1xXLR (M) 1xXLR (F) | ||
| Output | Full range: 1xNL4 Sub: 1xNL4 | ||
| Socket | 1 x PowerCon input 1 x PowerCon output | ||
| Presets | 4 presets |
